Description

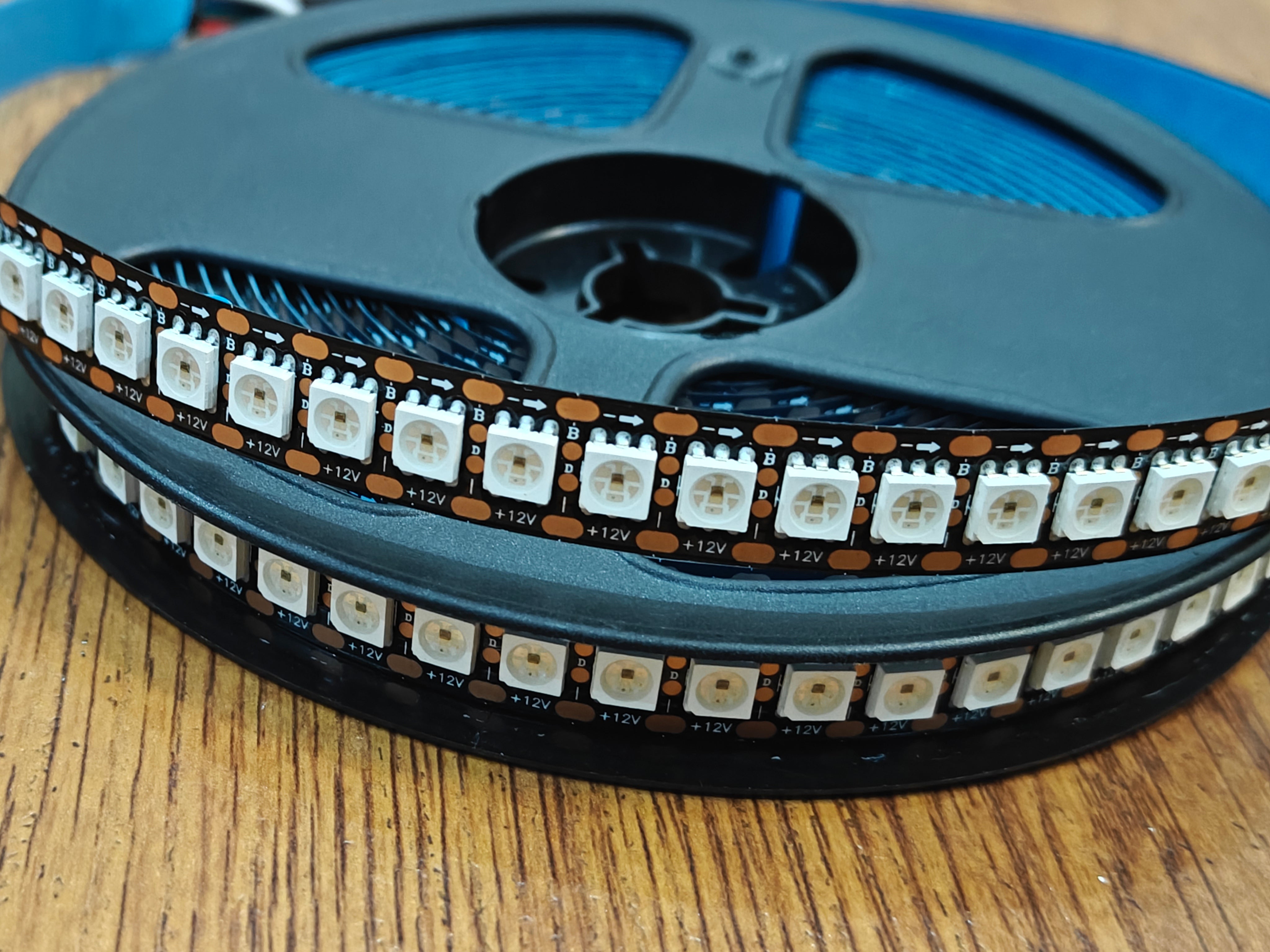

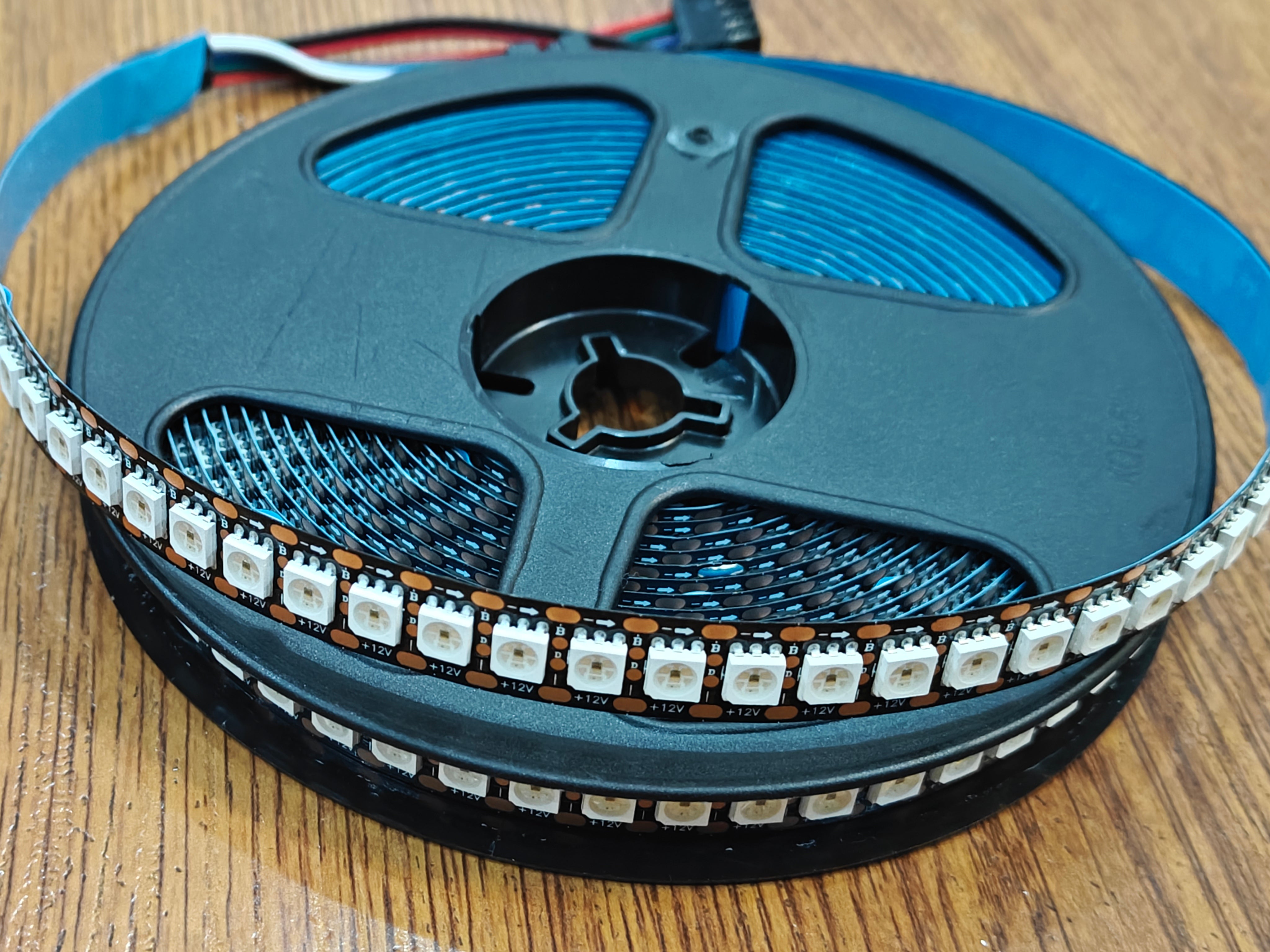

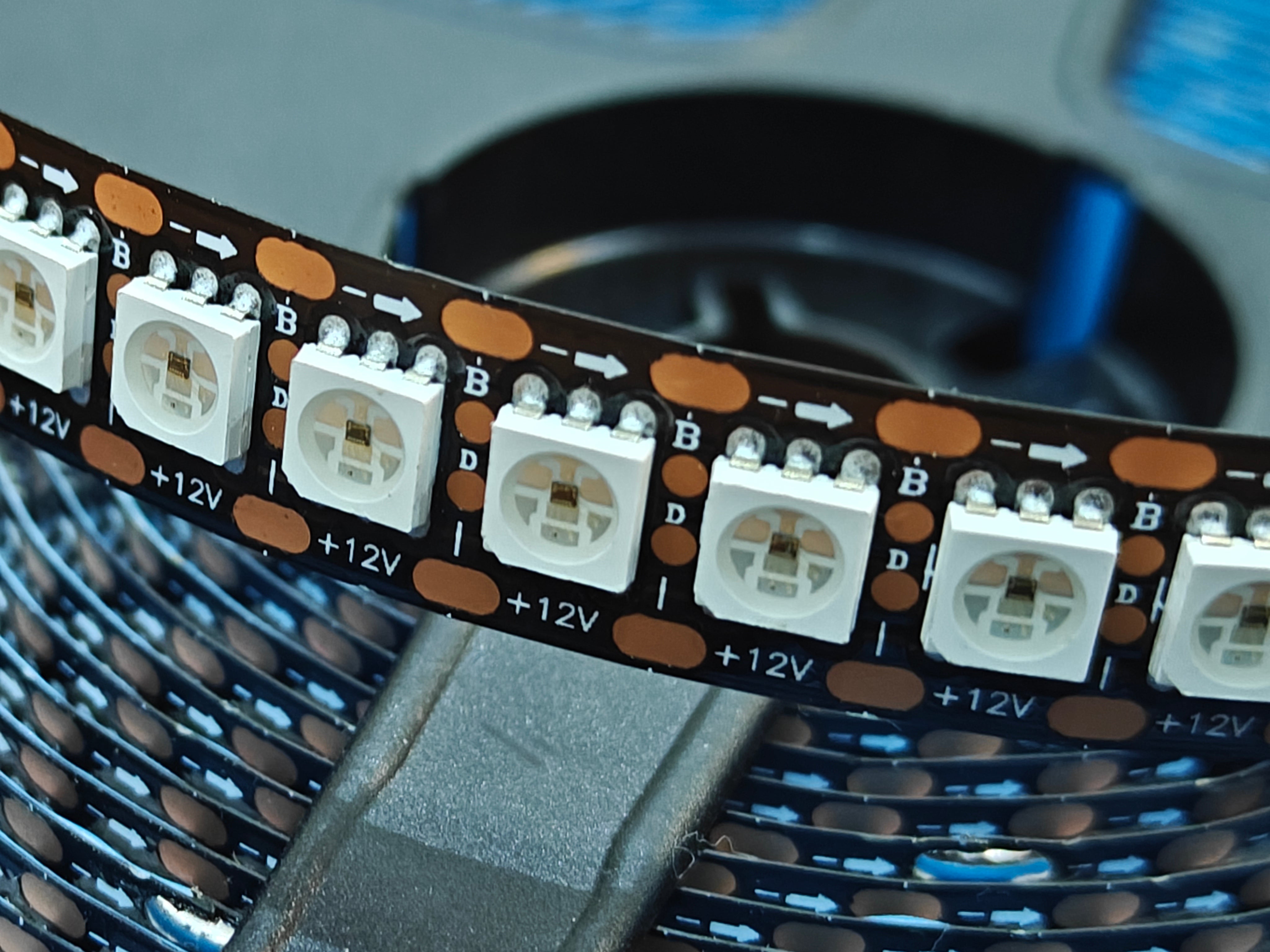

xWS2815 144 LED/m Addressable LED Strip is a high-density, 12V DC digital RGB flexible strip featuring dual-signal breakpoint continuation.
Key Specifications
• Operating Voltage: DC 12V
• LED Density: 144 LEDs and 144 IC pixels per meter
• Max Power Consumption: ~20.6W to 28.8W per meter (depending on the specific manufacturer/drive level)
• Color Depth: 24-bit (256 gray levels per channel)
• Signal Type: Dual-signal wire architecture (Data + Backup Data) so that if one pixel fails, subsequent pixels keep working
• Pinout (4-Wire): 12V (VCC), GND, Data (DIN), and Backup/Secondary Data (BIN)
Features & Advantages
• 12V Architecture: Higher voltage than standard 5V strips (like WS2812B) drastically lowers voltage drop over longer runs.
• Breakpoint Resume: Dual data lines mean a single dead pixel will not break the entire data stream downstream.
• High Density: 144 pixels/m allows for smooth, high-resolution chasing effects, animations, and matrix mapping.
• Controller Compatibility: Works seamlessly with microcontrollers and platforms like Arduino, Raspberry Pi, and SPI-to-DMX decoders.
