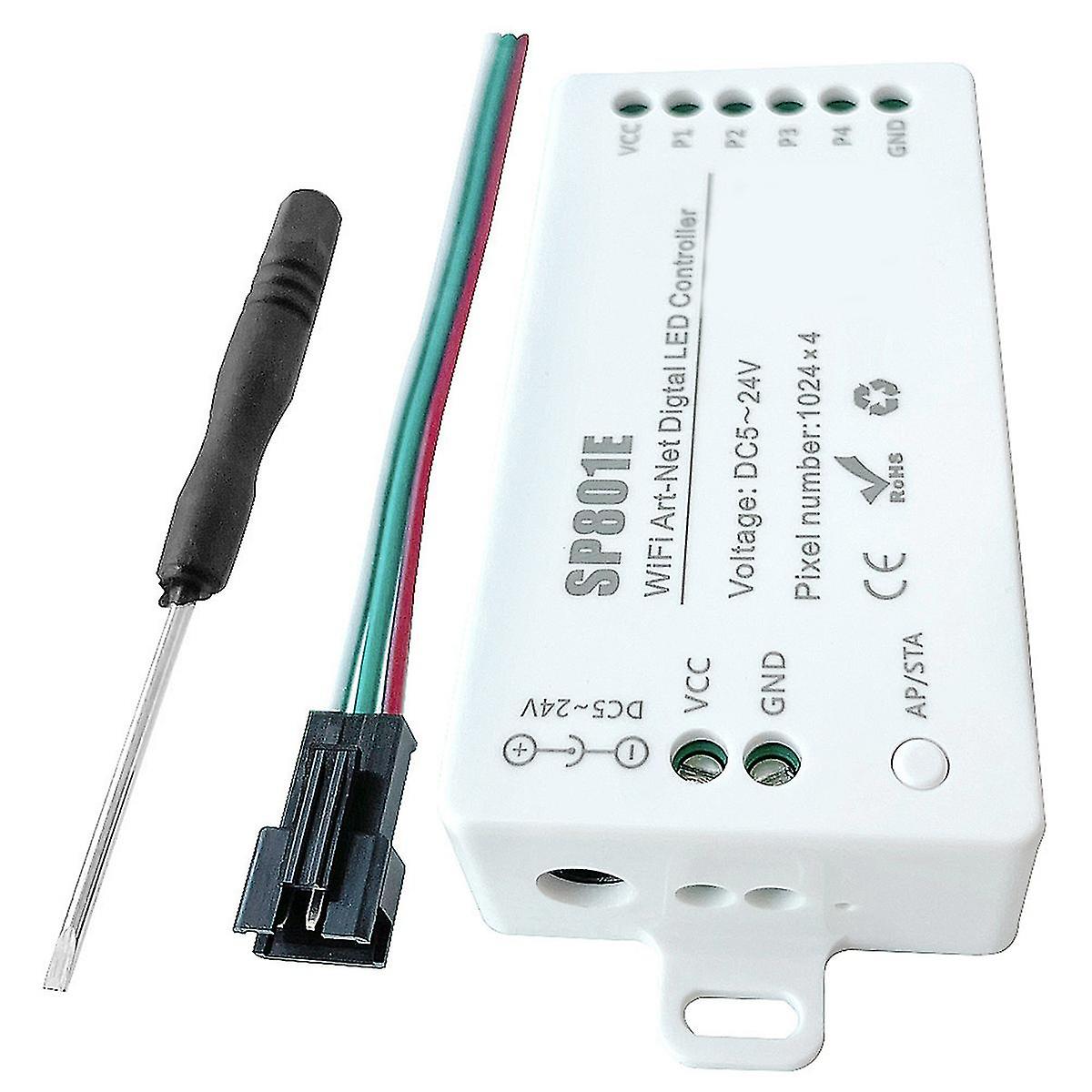

SP801E 4 SPI Channel MAX Output 4096Pixels WIFI Art-Net APP Control Digital Addressable LED Controller

SP801E 4 SPI Channel MAX Output 4096Pixels WIFI Art-Net APP Control Digital Addressable LED Controller

Features:

1. APP controlled via WiFi, compatible with multiple Art-Net computer software ;

2. BluFi configuration using dual mode chip(WIFI&BT);

3. Support AP mode and STA mode;

4. Two layout setting method: regular rectangle layout setting and importing DXF files ;

5. Support two layers overlay, built-in multiple types of effect layers: text layer, music effect layer…;

6. The effect layers support a variety of custom parameters: direction, width, color, length, shape…;

7. Real-time preview, support recording the current scene to the controller storage;

8. Support change device name ,reorder the RGB order, and OTA update.

Working Modes:

1.AP(Access Point) mode:Controller and Phone connect directly, controller works as an access point.

1> Go to your phone Settings page, connect the controller(SSID like SP801E_XXX, the default password is 12345678);

2> Open the BanlanX App ,Click “+” button to configure the new SP801E controller,then the controller will be showed on the device list;

2.STA(Station) mode:Controller and phone are in one same WiFi network, in this network, users can operate the controller.

There are two ways to configure the controller into the local WiFi network:

1> Connect your phone or tablet to a 2.4G Wi-Fi network.(Doesn’t support 5.0G Wi-Fi network)

2> Open the App and click“+” button to scan devices, click Add manually and select SP801E controller in the device category;

3> Input your Wi-Fi network password;

4> BluFi config and AP config:

•BluFi config: Press and hold device’s “STA/AP” button until the green led indicator flashes,then the device enters the network configuration state, click next and selcet the device you want to add;

•AP config:Switching the device to the AP mode, click next and connect your phone’s WIFI to the named like SP801E_XXX hotspot, password is 12345678,and return to the APP;

5> Pressing next step to wait for the configure processing finish;

6>After the configuration finished, the LED indicator will turn into solid green, the controller will be showed on the device list.

•Note: 1.Users can get more help and detailed information about SP801E on the Help&FAQ page.

2.Please keep your phone, the Wi-Fi router and the controller closer together to maintain a better signal connection during configuration.
