1. Introduction

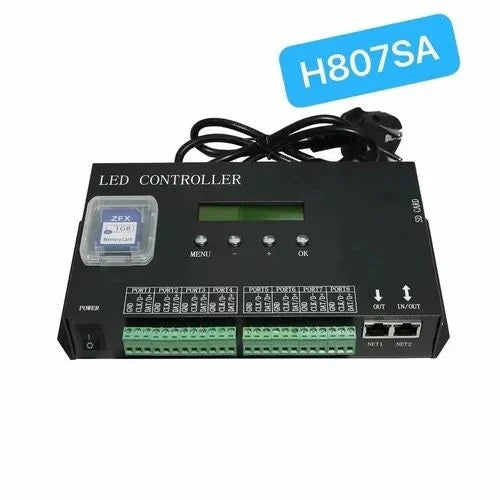

H807SA is a single led controller of the off-line control system. It has 8 output ports, can control 8,192 pixel lights.
H807SA can be connected to DMX console. Customer can adjust it via DMX console with sd card ,

you can make any programs via offline software: LEDBuild—Installed on computer, program display effects of lights and transfer data to SD card

then to put in master controller to playback to led pixel lights. The software only support Windows OS, not support MAC.

it can support online software :ledstudio and arnet software:madrix ,resolume ,ect

Three buttons and LCD screen are convenient for operation. Can be synchronized with AC power supply and connected to DMX console.
H807SA can drive the following chips: LPD6807, LPD8806, LPD6812, LPD6813, LPD1882, LPD1889, LPD1883, LPD1886, DMX512, HDMX, APA102, APA104, P9813, P9823, LD1510, LD1512, LD1530, LD1532, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2807, WS2811, DZ2809, SM16716,  TLS3001, TLS3002, TM1812, TM1809, TM1804, TM1807, TM1914, TM1926, TM1829, TM1906, INK1003, BS0825, BS0815, BS0901, LY6620, DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, 74HC595, 6B595, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, etc.

Notice: the maximum pixel number that each port can control only means the output ability of controller, whether actual signal can transmit to the end or not depends on the performance of lamp, EMI of switch power supply and the total interference of engineering field.

2. Performance
(1).Eight output ports, controls maximum 8192 pixels, each port controls maximum 1024 pixels.
(2).SD card supports FAT32, FAT16 format; the maximum capacity is 64G bytes, stores up to 64 DAT files.

it is a single led controller of the off-line control system. It has 8 output ports, can control 8,192 pixel lights.

Under our own software LEDBuild, customers can realize many display effects, can play text, picture and video.

(3).Many controllers can be synchronized with AC power supply.
(4).Can connect to DMX console, replace file, and adjust speed and brightness and responses quickly.
(5).The buttons and LCD screen are convenient to set the parameters.
(6).Support encryption by limiting the number of power-on time.

3. Advanatges

1. Four output ports drive maximum 8192 pixels,each port controls maximum 1024 pixels.

2.Have DMX512 interface for DMX512 console change brightness,color, file,speed,

3.support DMX512 ic address edit

4.support artnet protocol,one port support 8 universe maximum

5. Inkbook wifi inside the led controller
Open the drawing software, start the drawing lighting wiring wireless. ect

4.Specification and Parameter:

5  Features:

1. Perfect compatible with DMX512(1990) international standard protocol, and can be connected to DMX console.
   2. H807SA is a single led controller of the off-line control system. It has 8 output ports, can control 8,192 pixel lights. If you only use the 1st four output ports, each port can control 2048 pixels( #5 port has same data as #1 port, and #6port=#2port, #7port=#3port, #8port=#4ports). With our own software LEDBuild, customers can realize many display effects, can play text, picture and video.
   3. More control functions: it can control various normal drive IC lights, and or various customized drive IC lights.
   4. High speed photoelectric isolated signal input and output, to ensure the control system safety.
   5. Control system realize RGB 65,536 grayscales each channel.
   6. Project setting agility: realize adjust the brightness and speed separately.
   7. Support SD card max to 32GB, and can play 64 files of DAT format max.
   8. Playing speed is adjustable from 1 to 100 frames/s, and Brightness from 0 to 16.
   9. Accord with EMC electromagnetism compatibility, good anti-jamming capacity.
